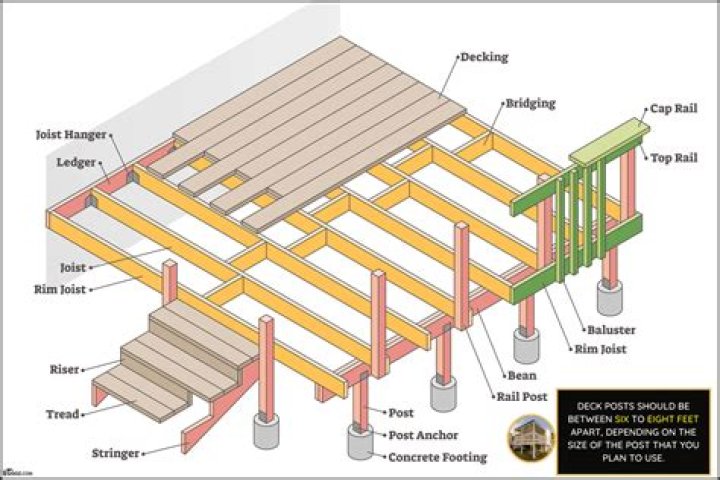

In general, posts should be spaced no more than 8 feet apart. Some builders position them every 4 feet for a completely rigid frame. The maximum distance between footings is determined by the size of your joist material.

How many posts do I need for a 12x16 deck?

A standard deck will need four footings parallel to the house, but they will need to be temporarily braced by 6 inch-by-6 inch posts. Using doubled boards, you will then need to build beams on the top row of the posts to frame the edges of the deck. These must be topped with adjustable post caps.

How far apart should piers be for a deck?

How Many Footings Will I Need? The standard rule for footings is that for a basic deck, the larger the beam and footing size, the fewer footings you’ll need. If you’re building a simple deck, footings and posts should be placed 8 feet apart on average.

Should you use 4x4 or 6x6 deck posts?

While there may be a handful of circumstances that only require the minimum 4×4 deck post, you will more than likely want to choose a 6×6 post for the deck. It provides more stability for larger decks, the ability to hold a heavier load, and more room for notching.

How many 4x4 posts do I need for a deck?

The larger 12-foot side will have a post spacing of 6 feet at a minimum code requirement. That makes a total of eight posts that need to be installed on this average size deck. For aesthetic or symmetry reasons, more posts may be added.

How often do you need deck footings?

For most situations, you will want to place footings and posts less than 8′ apart. If you are planning on installing a hot tub or porch on top of your deck, you will usually need more footings and posts to support the additional loads.

How many footings do I need for a 12x12 deck?

For an attached 12 x 12′ deck, you’ll need at least 3 footings, plus at least 2 more if you’re planning on building stairs with it. If your deck will be a different size, it’s easy to figure out how many you’ll need.

Should I set my deck posts in concrete?

A deck post should always be placed on top of footing, not inside concrete because it can break. … Concrete tends to absorb moisture and wood expands when it gets wet, so these two factors combined will result in the wood breaking the concrete.

Should deck joists be 2x6 or 2x8?

For upper-level decks, 2×10 is recommended as the minimum size to use for strong guard post connections. 2×6 joists should only be used on ground-level decks that do not require, and will not provide for, any guards. … Most decking is not strong enough to support longer spans than 16″.

Should you notch deck posts?

Say “No” to notching pressure-treated deck posts. We want you to build an outdoor railing system that you, your family and guests can enjoy without worrying about safety issues. In order to do so, you need to know this building shortcut is not advisable, and we recommend avoiding it at all costs.

Article first time published on

How many posts do I need for a 10x10 deck?

A freestanding 10′ x10′ deck needs 4 posts, supporting two pairs of 2-ply non-incised 2×8 beam, upgrading the beam to 3-ply using incised wood.

How many beams should a deck have?

A 20-foot wide deck, for example, would require two beams: one at 10 feet and one and 20 feet in order to support a deck with 2×8 joists spaced 16 inches apart.

Can I use 4x4 for deck posts?

Deck posts must be a minimum of 4×4 according to the IRC but many jurisdictions require a 6×6 post as a standard. To avoid code violations, many deck builders choose the 6×6 even if the 4×4 is acceptable.

How far apart should joists be on a deck?

Deck joists are typically spaced either every 12 inches or 16 inches on center. The maximum joist spacing you can use will depend on the size and allowable span of your joists.

Should you notch a 4x4 post?

While you might expect the notch to be the weak point in the connection, in fact none of the test posts failed at the notch. Even so, notching should be avoided, because it does substantially reduce the strength of the post.

What is the code for deck posts?

When it comes to decks, not all dimensions are safe or permitted. The minimum post size is 6 inches by 6 inches, though the required height of the post varies, depending on the deck itself. You will have specific requirements for railings, and these will depend on how far your deck sits from the ground.

Can I use deck pier blocks instead of footings?

Pier blocks can be used instead of footings for a ground-level deck not requiring permits. Piers blocks can also be used if the frost level depth is less then the height of the pier block.

Is 4x2 OK for decking?

4 x 2 Timber Rail / Joist These decking joists are the most common sized framing timber for decking. They provide a solid structure for fixing your decking boards too. When making your decking frame you should use a 400mm spacing between your timber joists.

Where do you put footings on a deck?

Deck footings have to be placed just right so that the posts they support land in the center of each footing. Pay attention to the framing plans. They might not call out the location of the footings, but they will at least show the centerline of the beam and the spacing of the posts.

How far can a 2x6 joist span without support?

A 2×6 can support up to 50 pounds per square foot of weight without sagging with a maximum span of about 12 feet when spanning a distance horizontally, with the 2×6 standing in a vertical position. This number includes both live and dead weight.

How many joists do I need for a 16 foot deck?

For example, when you space joists 16″ apart — which is standard for residential decks — a deck spanning 9 1/2′ would require 2-by-6 joists, a 13′ deck would need 2-by-8 joists and a 16′ deck calls for 2-by-10 joists.

How far can you run a 2x8 without support?

Using this rule, a 2×6 will span 9 feet, a 2×8 will span 12 feet, and a 2×10 will span 15 feet.

How long will a pressure treated post last in concrete?

A treated 4×4 will last 20 to 25 years in the ground if the conditions in the soil and climate are favorable. That number could increase to 40 to 75 years if you install the treated 4×4 in a cement ring rather than the soil. There are a few factors that influence how long the 4×4 can last in the ground.

How much concrete do you put on a deck post?

45 cubic feet of concrete when mixed with 2.5 quarts of water. In order to have enough concrete for one cubic foot, you’ll require 2.2 bags of 60-lb concrete.

How deep should 4x4 deck posts be?

Dig post hole so diameter of the hole is 3 times the width of the post (i.e., the hole for a 4” wood post should be about 12 inches wide). The depth of the hole should be 1/3-1/2 the post height above ground (i.e., a 6-foot tall fence would require a hole depth of at least 2 feet).

How many bolts should be in a deck post?

Bolts (at least 5 in. long for 4×4 deck posts, 2 bolts per post) Power drill. Long drill bit (same length as the bolts)

What is code for deck railing posts?

U.S. building code requires support posts for the rail structure to be no further apart than 6 feet on a deck with 4×4′ deck rail posts and no more than 8 feet apart for decks with 6×6′ deck rail posts. Posts should be no further apart than 5.5 feet on stairs.

What does a deck tension tie do?

This code detail permits the lateral connection from the deck joists to be made to top plates, studs or headers within the supporting structure, which eliminates the need to access to the floor joists inside the home.

What is the average cost of a 12x12 deck?

A 12 x12 deck can range in cost from $2 200 to $13 000, but the average will be $6 000. Costing $40 a square foot but can be as little as $15 or as high as $85, depending on the deck’s features. A pressure treated deck is the most economical, with composite being the more expansive option.

What material do I need for a 12x12 deck?

You will need 18 boards of 2-by-6-inch lumber or nine 2-by-10 inch boards to build the joists, also known as the beams. You should purchase an additional 25 percent wood to allow for framing pieces and waste.

How many footings do I need for a floating deck?

For an 8×10′ freestanding deck, you’ll need six footings. Unless you have access to a power auger, that’s a lot of digging. After digging each hole, you will need to install tube forms into each.
