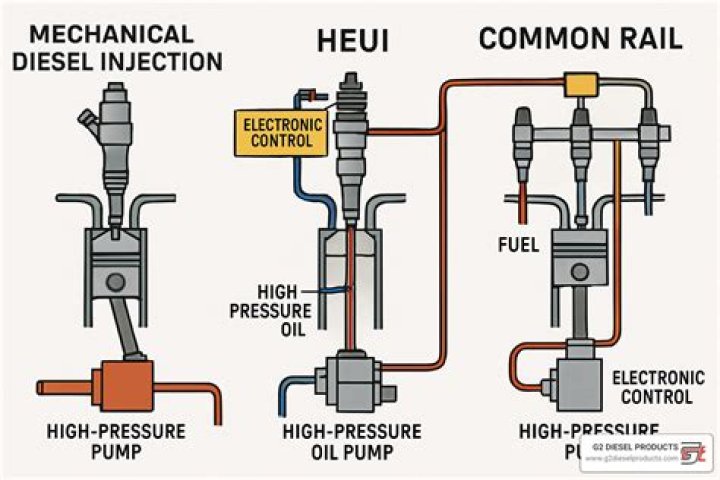

It’s called HEUI and it stands for hydraulically activated electronically controlled unit injector. An interesting yet complicated injection system that functions by using pressurized engine oil to fire its fuel injectors, HEUI is the perpetual underdog in diesel performance.

How does a heui work?

Instead of a conventional injection pump, HEUI systems use a high-pressure oil pump. … It isn’t timed to the engine and is also a seven-piston, swashplate-style pump. Unlike conventional injection pumps, the high-pressure oil pump does not create pressure. It creates a volume of oil for the injectors to use.

What engines use heui?

HEUI applications included the Ford 7.3L and 6.0L Powerstroke used between May 1993 and 2007. International also used the HEUI system for multiple engines including the DT 466E, DT 570, T-444E, DT-466–570, MaxxForce 5, 7, 9, 10, MaxxForce DT and VT365 engines.

What is a heui engine?

Hydraulic Electronic Unit Injectors (HEUI): This computer-controlled system consists of a combined pump and injector for each engine cylinder. It uses high amounts of pressure to fire precise strokes of fuel to the engine. You’ll mostly find HEUI systems in older Ford Powerstroke injectors.

Who invented the heui system?

A HEUI was created by Caterpillar and International for all powerstroke engines manufactured in the early 1990’s and into the early 2000’s until the injector was replaced by a high pressure common rail system in 2007. The HEUI injector consists of two parts: a high pressure oil chamber and a low pressure fuel chamber.

Are heui injectors adjustable?

Although injection pumps are often adjustable to some extent, the characteristics of injection events are relatively fixed. HEUI systems, however, are electronically controlled and injection events and characteristics can be commanded dynamically based on various parameters.

What is an heui injector?

It’s called HEUI and it stands for hydraulically activated electronically controlled unit injector. An interesting yet complicated injection system that functions by using pressurized engine oil to fire its fuel injectors, HEUI is the perpetual underdog in diesel performance.

What type of injector nozzle is used in a heui?

Spring-biased nozzles are common in mechanically actuated and electronically actuated fuel injection systems. Some examples include pump-line-nozzle systems, many unit pump and unit injector systems such as Delphi’s E1, Cummins CELECT and Caterpillar’s HEUI-A and MEUI-A.

How many fuel chambers are in heui?

The HEUI uses engine lubrication oil that is pressurized from870 psi (6 Mpa) to 3500 psi (24 Mpa) to pump fuel from the injector. The HEUI operates in the same way as a hydraulic cylinder to multiply the force of the high- pressure oil,there are four chambers.

Does Cummins use heui injectors?

Phasing Out the HEUI Injector Some of the first diesel engines to use the common rail include the Duramax LB7 in 2001, followed by the 5.9L Cummins in 2003.

Article first time published on

Is the 6.7 Powerstroke heui?

2 (6.7L) No HEUI here, just diesel fuel. Modern day, common-rail technology is employed on the 6.7L Power Stroke and at the heart of the system is a CP4. 2 high-pressure fuel pump from Bosch.

How many fuel pumps does a 7.3 Powerstroke have?

The 1994 – early 1999 model year 7.3L Power Stroke diesels (all “OBS” trucks and early Super Duty) utilize a two stage, camshaft driven mechanical fuel pump. A lobe on the camshaft operates a plunger protruding from the bottom of the fuel pump and through the engine valley.

What causes ignition to occur in a diesel engine?

The diesel engine, named after Rudolf Diesel, is an internal combustion engine in which ignition of the fuel is caused by the elevated temperature of the air in the cylinder due to mechanical compression; thus, the diesel engine is a so-called compression-ignition engine (CI engine).

What is the expansion of heui?

This Hydraulic Electronic Unit Injector, (HEUI), requires no mechanical actuating or mechanical control devices, and offers many advantages over conventional fuel injection systems.

How does a piezo injector work?

Piezo fuel injectors (CRI4), which use piezo crystals as part of a rapid actuator, are helping manufacturers to meet their Euro 6 target. These injectors work by passing electrical current through a stack of Piezo crystals, causing them to expand; as the crystal discharges the current it contracts to the original size.

How do you fix stiction?

Stiction can be combated using a specially formulated oil additive and it’s onset time reduced by using a quality synthetic engine oil changed at OE recommended intervals.

How are heui supplied hydraulically by fuel charging pressure?

Fuel charging pressure to the H.E.U.I’s is at values between 30 psi (2 bar) and 60 psi (4 bar). Engine-lubricating oil is used as the hydraulic actuating medium for the H.E.U. I’s. The pressure is boosted to values of up to 4,000 psi (276 bar) by a swash plate-type hydraulic pump.

How does a 6.0 injector work?

The 6.0 Powerstroke engine, like the 7.3 its predecessor, uses Hydraulic Electronic Unit Diesel Injectors (HEUI), which receive energy to open from engine lube oil that’s pressurized by a gear-driven high-pressure pump.

What are leak off or overflow pipes and what do they do?

Leak off & Overflow Pipe are used for returning of the excess fuel after injecting fuel into the diesel engine.

What type of injectors are used in a typical diesel CR system?

Modern diesel fuel injectors, such as those found in common rail fuel systems, use piezoelectricity. Piezoelectric injectors are extremely precise and can handle the very high pressures found in common-rail applications.

What is the injector driver output voltage used to actuate a Siemens heui?

The components are:• High voltage electric solenoid. This device controls poppet valve operation. Thesolenoid requires approximetely 115 v D/C and 7-15 amps of current to actuate.

Why is it called Diesel?

What is diesel fuel? Diesel fuel is the common term for the distillate fuel oil sold for use in motor vehicles that use the compression ignition engine named for its inventor, German engineer Rudolf Diesel. He patented his original design in 1892.

How do common rail injectors work?

Abstract: In the common rail system, fuel is distributed to the injectors from a high pressure accumulator, called the rail. The rail is fed by a high pressure fuel pump. The pressure in the rail, as well as the start and end of the signal that activates the injector for each cylinder are electronically controlled.

How does a diesel inline fuel pump work?

An Injection Pump is the device that pumps fuel into the cylinders of a diesel engine. … It rotates at half crankshaft speed in a conventional four-stroke diesel engine. Its timing is such that the fuel is injected only very slightly before top dead centre of that cylinder’s compression stroke.

What does high pressure oil pump do?

The High Pressure Oil Pump (HPOP) delivers high pressure oil to the fuel injectors, which operate hydraulically.

How much fuel pressure should a 7.3 have?

40 – 70 psi at idle is within spec. You may notice rapid fluctuations in the fuel pressure reading; this is completely normal for the mechanical fuel pump found on 1994.5 – 1998 model year engines. So long as the minimum pressure reading is greater than 40 psi, the fuel pressure is within spec.

Is a CAT 3126 a good engine?

The 3126 Cat is a turbocharged 7.2L inline 6-cylinder diesel engine produced by Caterpillar and first introduced in 1997; it was the very first electronic mid-range diesel engine that Cat had produced. … However, if these engines are treated accordingly, they are in fact a very reliable.

Does a heui pump have to be timed?

These are not timed so you don’t have to worry about calibrating.

How is fuel delivered to the engine?

From the pump to the tanks the gas travels through the fuel pump. The pump sends fuel from the gas tank to the engine. Some vehicles are equipped with multiple gas tanks and even multiple fuel pumps. … The pump forces fuel through the fuel lines that deliver fuel from the tank to the engine for combustion.

What force creates injection pressure values in a HEUI injector?

The electric control in the HEUI system is only used in the activation of the solenoid valve that opens and closes the path of the high-pressure hydraulic oil that pushes the plunger. Thus, the force that creates pressure to the HEUI Injector is a hydraulic form of force.

What is the reason for advancing injection timing as engine speed increases?

➢ Advancing the injection timing (early injection timing) produce a better brake torque across all engine speed compared to the various injection timing under the same operating conditions. This is because of the homogeneous mixture of the air and fuel which promotes a better combustion quality.
