A Single Pole Single Throw (SPST) switch is a switch that only has a single input and can connect only to one output. This means it only has one input terminal and only one output terminal. A Single Pole Single Throw switch serves in circuits as on-off switches. When the switch is closed, the circuit is on.

What is single throw and double throw?

A single-throw switch is a simple on/off switch that connects or disconnects two terminals. When the switch is closed, the two terminals are connected and current flows between them. … A double-throw switch connects an input terminal to one of two output terminals. Thus, a double-pole switch has three terminals.

What is a throw on a switch?

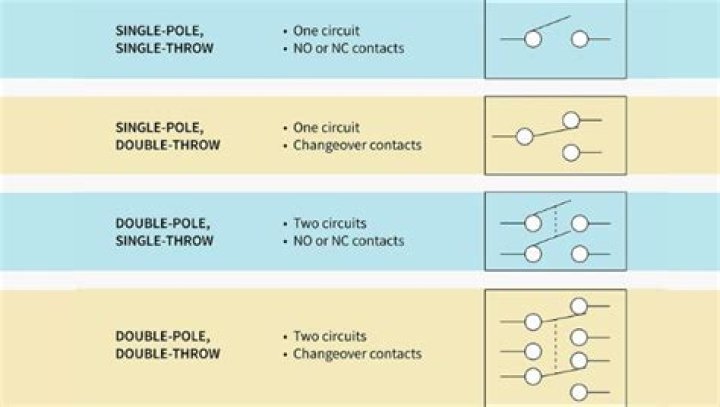

Switches in Electrical Circuits: Pole & Throw “Pole” indicates the number of circuits that one switch can control for one operation of the switch. “Throw” indicates the number of contact points. NO and NC contacts are single throw.

What is double throw?

Definition of double-throw switch : an electric switch having moving blades that may engage either of two different sets of fixed contacts.

What is single pole triple throw?

A single pole triple throw on-on-on toggle switch. A switch designed to have one of three circuits always live and be able to flip between these three circuits. Not to be confused with the double pole variety that has either one circuit live, the other circuit live, or both circuits live.

How do SPDT switches work?

A Single Pole Double Throw (SPDT) switch is a switch that only has a single input and can connect to and switch between the 2 outputs. This means it has one input terminal and two output terminals. … For example, a SPDT switch can connect to create a Ready Mode and a Standby Mode in a printer.

What is 4PDT?

▪ 4PDT – Four Pole Double Throw.

What is difference between SPDT and DPDT?

SPDT vs DPDT The difference between SPDT and DPDT is that SPDT has a single input that connects to two outputs while the DPDT has two SPDT integrated together which enables it to control two circuits together at the same time.

What does single pole single throw mean?

A Single Pole Single Throw (SPST) switch is a switch that only has a single input and can connect only to one output. This means it only has one input terminal and only one output terminal. … When the switch is open, the circuit is off. SPST switches are, thus, very simple in nature.

What is a push button switch?

A Push Button switch is a type of switch which consists of a simple electric mechanism or air switch mechanism to turn something on or off. Depending on model they could operate with momentary or latching action function. … This means that when a button is pressed it can cause another button to release.

Article first time published on

What is single pole?

A single pole switch has one input and one output, it has two states; “on” or “off”. They can be wired either normally open or normally closed and can be either latching or momentary. There are two types of single pole switch, these are “single-pole, single throw” and “single pole double throw”.

What is the difference between a single throw and double throw switch?

A single-throw switch is a simple on/off switch that connects or disconnects two terminals. When the switch is closed, the two terminals are connected and current flows between them. … A double-throw switch connects an input terminal to one of two output terminals. Thus, a double-pole switch has three terminals.

What is a pole and what is a throw?

Pole refers to the number of circuits controlled by the switch: SP switches control only one electrical circuit. … Throw refers to the extreme position of the actuator: ST switches close a circuit at only one position. The other position of the handle is Off.

What are the 4 types of switches?

• SPST (Single Pole Single throw)
• SPDT (single pole double throw)
• DPST (double pole, single throw)
• DPDT (double pole double throw)

What is a single pole double throw relay?

The SPDT Relay(30A) is a high quality Single Pole Double Throw Relay(SPDT). The Relay consists of a coil, 1 common terminal, 1 normally closed terminal, and one normally open terminal. When the coil of the relay is at rest (not energized), the common terminal and the normally closed terminal have continuity.

What is a pole in a switch?

“Pole” indicates the number of circuits that one switch can control for one operation of the switch. … If one switch can control one circuit for one operation, it is a single-pole switch. If it can control two or three circuits for one operation, it is a double-pole or a triple-pole switch.

What is a toggle switch?

A toggle switch is a type of electrical switch that is actuated by moving a lever back and forth to open or close an electrical circuit. There are two basic types: maintained contact and momentary toggle switches.

What is a rocker switch?

Rocker Switches house a button for operation that can be pressed on either end like a seesaw to connect or disconnect an electrical circuit. They are often used as ON/OFF switches on the main power supplies for electronic devices.

How do you test SPDT?

Single Pole Double Throw (SPDT) Testing: To test an SPDT Switch, an Ohmmeter or Voltmeter can be used. With three terminals, they will have continuity in one position and no contact in the other. The switch may also have a no-contact middle connection. The contact typically moves opposite of the terminals.

How many circuits can a SPDT switch control?

Basically two SPDT switches, which can control two separate circuits, but are always switched together by a single actuator. DPDTs should have six terminals. A DPDT circuit symbol, and a 6-terminal DPDT rocker switch.

How do DPDT switches work?

A Double Pole Double Throw (DPDT) switch consists of six terminals, two of which are independent input terminals. Each of the poles can complete two different circuits. In other words, each input terminal connects with two output terminals, and all four output terminals are separate.

What is the difference between single pole and 3 way switch?

The most common household switch, a single-pole, has two terminals and simply turns power on or off. A three-way switch has three terminals; a four-way has four. … You can usually replace any single-pole switch with a dimmer.

Which switch is a single pole single throw switch?

A simple on-off switch This is type of switch is called SPST (single pole, single throw) and its action is described as ON-OFF. The switch mechanism has two positions: closed = on and open = off, but it is called ‘single throw’ because only one position conducts.

What is NO and NC?

Normally Open (NO) and Normally Closed (NC) terms refer to type of dry contact or wet contact. Put very simply, a Normally Open sensor will have no current when in a normal state but when it enters an alarm state it will have +5V applied to the circuit.

What is NO and NC in push button?

Terminal color distinguishes NO and NC contacts Some push button switches can be distinguished from the color of the terminal. … Generally, the button caps are made of different colors. Green (or blue) is NO contact, and red (or pink) is NC contact.

What is tactile switch?

A tactile switch allows electricity to flow in an electrical circuit by manually pressing the operating section. The switch is used to supply input signal to actuate a device or equipment.

What does SP and DP mean on sockets?

Commonly used as light switches in your household, all electrical switches can practically turn on and off any electronic device. … We categorise switches as single-pole (SP) or double pole (DP) switches based on their working mechanism and functionality.

What does 3 way switch mean?

A 3-way switch is larger than a single pole switch and has three screw terminals for wiring connections, plus a ground. Two of these take traveler wires that go from one switch to the other. For the third terminal, one switch is connected to the hot supply wire while the other switch is joined to the light.

Is a two way switch?

In a two-way switch, there are two, one-way switches combined in one. One of the terminals can be connected to either of the two, but not both at the same time. The advantage of a two-way switch is the ability to control a single device from two separate locations.

Do I need single or double pole switch?

Whilst a single pole socket is generally cheaper it is always preferred that customers/electricians install double pole sockets for safer isolation of the plugged in appliances.

Can I use a 3 way switch for a single pole?

To convert a 3-way switch to single pole, one of the traveler wires is removed from the switch. In order for a 3-way switch to function as a single pole, the wires need to be connected to the common and one of the traveler terminals. … 3-way switches can be converted to single pole in several configurations.
