Both latches and flip-flops are circuit elements whose output depends not only on the current inputs, but also on previous inputs and outputs. … The difference between a latch and a flip-flop is that a latch does not have a clock signal, whereas a flip-flop always does.

What is the difference between latch and flipflop?

The difference between a latch and a flip-flop is that a latch is level-triggered (outputs can change as soon as the inputs changes) and Flip-Flop is edge-triggered (only changes state when a control signal goes from high to low or low to high).

Why flip flops are known as latch?

A flip-flop is made up of latches as the basic building blocks. But the difference is the change in the input state basing on the clock signals. … This behavior of flip and flop of output states without the interference of clock transitions can be done by Enable signals. Hence a flip-flop is referred to as the latch.

What are latches and flip-flops What is difference between them and what are their common types?

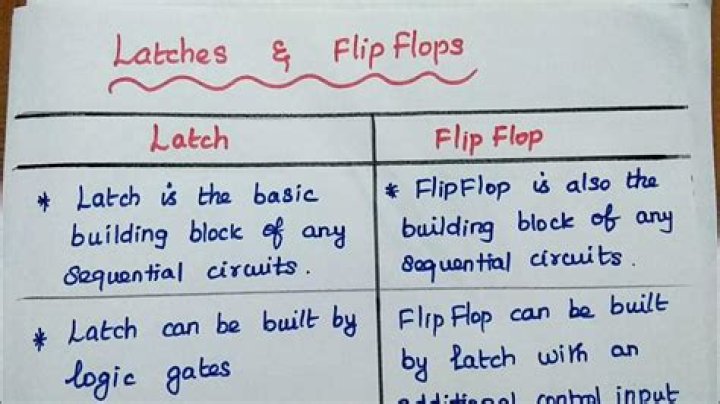

The major difference between latches and flip-flops is that a latch doesn’t contain any clock signal whereas flip-flops consist of a clock signal. Generally, latches and flips are classified into different types such as D-type (data /delay), SR-type (set-reset), T-type (toggle) and JK-type.

What are five differences between latches and flip flops?

SNOFlip-flopLatch7a, Flip-flop always have a clock signallatche doesn’t have a clock signal8Flip-flop can be build from LatchesLatches can be build from gates

Do latches have clocks?

Both latches and flip-flops are circuit elements whose output depends not only on the current inputs, but also on previous inputs and outputs. The difference between a latch and a flip-flop is that a latch does not have a clock signal, whereas a flip-flop always does.

What is latch and example?

Latch is defined as to fasten something closed. When you close a gate and fasten a metal bar to keep it from opening, this is an example of when you latch the gate. … A spring lock on a door; specif., a night latch.

Why latches are faster than flip-flop?

Latches are faster, flip flops are slower. Latch is sensitive to glitches on enable pin, whereas flip-flop is immune to glitches. Latches take less gates (less power) to implement than flip-flops.

Why are latches not preferred?

Latches can lead to timing issues and race conditions. They may lead to combinatorial feedback – routing of the output back to the input – which can be unpredictable. To avoid creating inferred latches: Include all the branches of an if or case statement.

Which flip flop can be used as a latch?

RS flip-flop is used as a latch.

Article first time published on

Why latches are called memory devices?

Why latches are called memory devices? Explanation: Latches can be memory devices, and can store one bit of data for as long as the device is powered. Once device is turned off, the memory gets refreshed. … Explanation: A latch has two stable states, following the principle of Bistable Multivibrator.

What is the difference between D latch and D flip flop?

The D-type Flip Flop Summary The difference between a D-type latch and a D-type flip-flop is that a latch does not have a clock signal to change state whereas a flip-flop always does. The D flip-flop is an edge triggered device which transfers input data to Q on clock rising or falling edge.

Why is D flip flop better than D latch?

The D FlipFlop can be interpreted as a delay line or zero order hold. The advantage of the D flip-flop over the D-type “transparent latch” is that the signal on the D input pin is captured the moment the flip-flop is clocked, and subsequent changes on the D input will be ignored until the next clock event.

Is a gated latch a flip flop?

For this reason it is also known as a synchronous SR latch. … So, gated S-R latch is also called clocked S-R Flip flop or synchronous S-R latch. Since this latch responds to the applied inputs only when the level of the clock pulse is high, this type of flip-flop is also called level triggered flip flop.

Which flip flop is better and why?

T Flip Flop or JK Flip Flops are the correct options. The basic requirement from the counter operation is incrementing or decrementing the values with the occurrence of clock edge. This behavior of sequential design operation is possible with Flip Flops, which toggles to make the three or four digit binary number.

Where do we use latches?

Latches are single bit storage elements which are widely used in computing as well as data storage. Latches are used in the circuits like power gating & clock as a storage device. D latches are applicable for asynchronous systems like input or output ports.

What are the different types of flip flops?

• Set-Reset (SR) flip-flop or Latch.
• JK flip-flop.
• D (Data or Delay) flip-flop.
• T (Toggle) flip-flop.

What are different types of latches?

• Bolt Latch: Bolt latches or latch bolts are simple latching mechanisms that consist of a bolt, a handle, a backplate, a set of barrels, and a box called a striker. …
• Spring Latch: …
• Slam Latch: …
• Swinging Latches: …
• Cam Latch: …
• Cabinet Latch: …
• Gate Latch: …
• Turn Latch:

Are flip flops made from latches?

Flip-flops can be either simple (transparent or asynchronous) or clocked (synchronous). In the context of hardware description languages, the simple ones are commonly described as latches, while the clocked ones are described as flip-flops.

Why is latch bad?

Latches essentially do the same thing as flip-flops, but with inferior timing capabilities. … In the first half of the example, we have a latch whose output goes through combinational logic to a flip-flop. We don’t know what comes before the latch, and therefore we must assume that its input can change at any time.

Are latches register?

In simple words, latch is a circuit that can hold 1 bit of data and is asynchronous (i.e. without a clock). Registers are combination of flipflops( which are the same as latch but have a clock pulse to trigger). Registers can hold 2^n data(n bit of data) if it consists of n number of flipflops.

How is latch inferred?

Latches are inferred in VHDL by using the IF statement without its matching ELSE. This causes the synthesis to make the logical decision to “hold” the value of a signal when not told to do anything else with it. The inferred latch is a transparent latch.

Where is Flip Flop used?

A flip flop is an electronic circuit with two stable states that can be used to store binary data. The stored data can be changed by applying varying inputs. Flip-flops and latches are fundamental building blocks of digital electronics systems used in computers, communications, and many other types of systems.

Is a flip flop a sandal?

Flip-flops are a type of light sandal, typically worn as a form of casual footwear.

How many latches are there?

There are basically four main types of latches and flip-flops: SR, D, JK, and T. The major differences in these flip-flop types are the number of inputs they have and how they change state. For each type, there are also different variations that enhance their operations.

What is called latch?

Definition: Latch is an electronic logic circuit with two stable states i.e. it is a bistable multivibrator. Latch has a feedback path to retain the information. Hence a latch can be a memory device. Latch can store one bit of information as long as the device is powered on.

When an inverter is placed between the inputs of an SR flip flop the resulting flip flop is?

Q.When an inverter is placed between both inputs of an SR flip-flop, then resulting flip-lop isB.d flip-flopC.sr flip-flopD.master slave jk flip-flopAnswer» b. d flip-flop

What are D type flip flops used for?

D-Type Flip-Flop A D flip-flop is widely used as the basic building block of random access memory (RAM) and registers. The D flip-flop captures the D-input value at the specified edge (i.e., rising or falling) of the clock. After the rising/falling clock edge, the captured value is available at Q output.

What is the difference between RS and SR flip flop?

The only difference is – priority. S – “Set” and R – “Reset”, in SR flip flop Set input has greater priority and in RS flip flop Reset input has greater priority. In SR flip flop we use NAND gate while in RS flip flop we use NOR gate Resources and Information. is one of the basic difference between the two.
