Tube diameter in 1⁄8 in (3.175 mm)Nominal lengthNominal power (W)T85 ft (1,524 mm)58T86 ft (1,829 mm)70T1214–14.5 in (356–368 mm)14,15T1216.5 in (419 mm)15

What is the standard size of a fluorescent light?

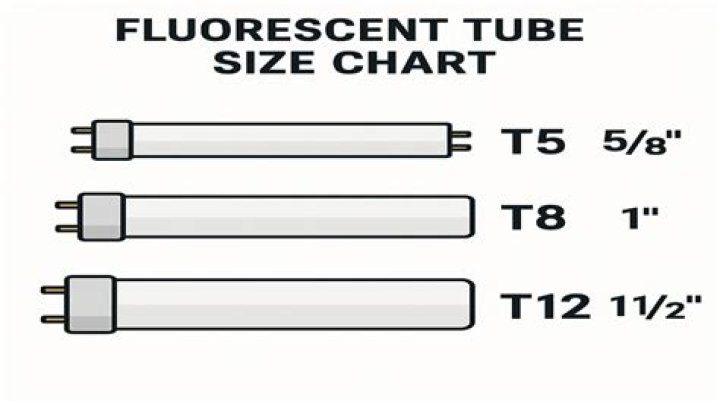

While there are multiple types of LED and fluorescent tube lights, the three most common are T12, T8 and T5. The terminology comes from “T” for “tubular” and the diameter of the bulb in eighths of an inch, so “T8” represents a tube of 8/8ths of an inch, or 1 inch.

How long is the average fluorescent light?

While, a 48-inch fluorescent lamp will, on average, burn for 20,000 to 34,000 hours, the quality of light output gradually decreases over time. The “economic life” of a fluorescent lamp is only about 60 percent that of its actual burn time.

Are all fluorescent tubes the same length?

Fluorescent circline tubes are typically 1 and 1/8 of an inch in diameter. Their outside diameter (which is measuring the circle from one end to the other) comes in four options – 6, 8, 12, and 16 inches.

Will a T8 fit a T12?

T8 tubes are simply 1 inch in diameter versus the 1.5 inch diameter of T12 tubes. In an effort to make LED tube lights compatible with the internal dimensions of most fixtures, you will find that most LED tube lights feature a T8 or 1 inch diameter. They can indeed be used in T12 fixtures.

What size is a T5 tube?

Available in T5 (15mm diameter), T6 (20mm diameter), and T9 (29mm diameter) formats, circular fluorescent tubes are commonly used by lighting designers in the creation of well-lit interior spaces.

Can I replace fluorescent tubes with LED?

Yes, you can replace fluorescent tubes with LED tubes or LED-integrated fixtures. If you just want to replace the bulbs, you can use plug-and-play, direct-wire, or hybrid LED tubes.

What is the difference between T8 and T12 fluorescent bulbs?

The main difference between T8 and T12 tubes is the tube’s diameter. T12 tubes are 1.5″ in diameter while T8s are just one inch. All other things—socket sizes, lengths, distance between pins—are the same. T8 LED tubes won’t fall out if you try to install them in a T12 fixture—they’ll fit just fine.

What is a T8 fluorescent tube?

The “T” designation in fluorescent lamp nomenclature stands for tubular — the shape of the lamp. The number immediately follow- ing the T gives the diameter of the lamp in eighths of an inch. … A T8 lamp (on the right in the figure below) is eight-eighths of an inch, or one inch (2.54 cm), in diameter.

How long does a T8 fluorescent tube last?

LED tubes last an average of 50,000 hours (roughly 16 years) while fluorescent T8 tubes last an average of 25,000 (roughly 8 years).

Article first time published on

What is T5 fluorescent tubes?

A T5 is a type of fluorescent tube. It differs from a T12 and a T8 in its diameter. All T5s are 5/8ths of an inch (T8s are exactly 1inch thick and T12s are 12/8ths or 1.5 inches thick). T5s are 16mm in diameter making them the thinnest fluorescent tube out of the three.

What is the difference in fluorescent tubes?

The major physical difference between T5 and T8 light bulbs is the length and diameter of the tube itself. The T5 tends to be slightly shorter than the T8 tube, and is significantly smaller in diameter. This factor is important to consider when looking at your fixture, because the two tubes are not interchangeable.

What happens when you put a T8 bulb in a T12 fixture?

If you place T12 tubes in a fixture with a T8 ballast, you will wear out the ballast and have to replace it. If you place T8 tubes in a fixture with a T12 ballast, then the tubes will have a shorter life due to a higher current through the tube.

Are fluorescent tubes being phased out?

The sale of halogen lightbulbs will be banned in the UK from September as part of ministerial efforts to cut carbon emissions. A ban on fluorescent lighting, which is mostly used in offices, will follow in September 2023.

Can I replace a T12 with a T8 tube?

The easiest and lowest price option to replace a T12 is a T8 linear fluorescent. They have become the go-to option for pre-existing T12s. If you still have magnetic ballasts, switching to a T8 will require a ballast swap.

Which is better LED or fluorescent?

LED tube lighting is the better choice because it lasts about 40,000 hours longer in testing, is more energy efficient, will save you more money, and will leave less impact on the environment.

Do LED fluorescent bulbs need a ballast?

No LED bulbs require a ballast, although some are engineered to work with an existing ballast. You will find ballast-compatible or “plug-and-play” LEDs that are designed to replace linear fluorescents, compact fluorescents, or HIDs.

What size is a T4 bulb?

T4 tubes have a diameter of 13mm. They’re compact and easy to install making them perfect for illuminating kitchen counters and worktops as well as under cabinet lighting.

What is T12 fluorescent tubes?

The T12 is an older generation fluorescent bulb that generates light through electromagnetic induction, which is considered less efficient method of creating light compared to that of newer electronic based circuits.

Which is brighter T12 or T8?

The Standard T12 lamp produces 2,650 initial lumens per lamp. The standard T8 produces 2,800 initial lumens per lamp, 6% brighter. But the standard T12 lamp produces 2,300 design lumens and the T8 produces 2,660 design lumens. … Design Lumens are the average lumen output of the lamp after 40% of its rated life.

What's better T5 or T8?

However, T5 high-output bulbs have an even more significant advantage in being roughly 9% more efficient than T8 bulbs, allowing them to generate more light in a smaller space while using less wattage (75 to 90 lumens per watt). T5 also has a high color rendering index (CRI), making them more visually appealing.

Are T12 bulbs being discontinued?

In effect since July 2012, the legislation eliminates nearly all 4-foot T12 lamps, some 4-foot T8 lamps, most 8-foot T12 lamps, and almost all standard halogen PAR38, PAR30 and PAR20 lamps from the market. T12 technology is over 80 years old. Since that time, lamps and bulbs have been developed that just work better.

Can you use a T8 LED bulb with a T12 ballast?

Waveform Lighting’s T8 LED tube lights feature compatibility with all ballast configurations (ballast, ballast bypass single ended, ballast bypass double ended), so they can safely be used in T12 fixtures as long as the T12 ballast is bypassed or removed.

Can I replace T8 with LED?

Type A – LED tube has an Integrated Driver for use on Existing Fluorescent Ballast. Type A LED tubes need an existing T8 electronic ballast to operate. … All you need to do is remove the existing T8 fluorescent lamp and install a new T8 LED Type A lamp.

At what pressure will a light bulb turn off?

Typically about 0,7 atm . Pressure would be quite a bit higher at operating temperature than at room temperature. So you are both right. What’s required is the conditions to be right at high temperature.

How long does a 4 foot fluorescent bulb last?

A typical 32 watt, four foot fluorescent lamp is rated to burn for about 20,000 hours. Turning the lamp on for brief periods will result in shorter expected bulb life in terms of burning hours. The 20,000 hour figure assumes about 6,600 “starts” at a “typical” burn time of three hours.

Can you replace T5 with T8?

T5 lamps cannot replace T12 or T8 lamps because of differences in physical and electrical characteristics. T5 lamps come in different lengths than T8 and T12 lamps. A nominal 4-foot T5 lamp is actually shorter than an equivalent T8 lamp [1149 millimeters (45.23 inches) in total].

How do I know if I have T8 or T12?

If no markings are available, the size in diameter of the tube is the easiest way to determine the type you have installed. T8 tubes are 1-inch in diameter and T12 tubes are 1 1/2 -inch.

What is the difference between magnetic and electronic ballast?

A magnetic ballast uses coiled wire and creates magnetic fields to transform voltage. … An electronic ballast uses solid state components to transform voltage. It also changes the frequency of the power from 60 HZ to 20,000 HZ or higher depending on the ballast.

Is F40 the same as T8?

This means a T8 lamp is 8/8ths of an inch in diameter, or 1 inch. … All F32 and F40 lamps are essentially 4 foot long lamps (47″ if you don’t count the pins). The FR71T12 is actually a 71″ long x 1.5″ diameter lamp that can handle from 80-120w and is typically run at 100w. It uses the different use of the F number.

How do I know which fluorescent light bulb to buy?

In order to identify which size you need, the easiest way to tell is to read the label near the base of the tube. If this information is no longer legible, you can measure the bulb’s diameter. Fluorescent tubes are measured in eighths of an inch.
