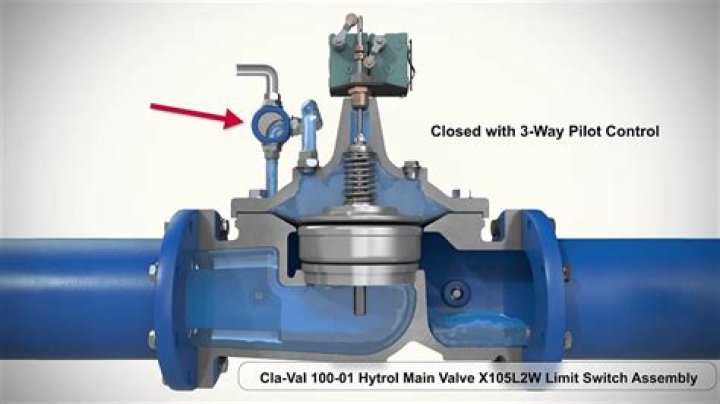

Limit Switches are activated by cams connected to the actuator shaft. When activated, they send discrete electrical signals to indicate actual valve position, usually confirming that a valve fully opened or closed operated remotely. … For example, locking out a pump until its supply valve has been opened.

What is limit switch in on off valve?

Limit switches are suitable for automation of on/ off applications and issue an electric binary signal when the valve travel exceeds or falls below an adjusted limit. … The installed limit contacts are either inductive, electric, pneumatic or software-based, depending on the device version.

What is a limit valve?

Pressure-limiting valves are a type of pressure control valve. They safeguard the system against excessive system pressure or limit the operation pressure. … They generate a largely constant pressure drop between the inlet and outlet on the valve. In the opposite direction the flow can pass freely.

What is a limit switch and why is it important?

A limit switch is an electromechanical device, and it can be considered as a contact sensor that is widely used in many industries to detect the position or presence of an object. This device has good precision and repeatability and it is because these switches make direct contact.

When would you use a limit switch?

Limit switches are used to detect the presence or absence of an object. These switches were originally used to define the limit of travel of an object, and as a result, they were named Limit Switch.

What is a control valve used for?

What are Control Valves? Control valves are used in many processes to control flow, pressure, temperature or other variables. The type of valve used will depend on the size of the pipe, the overall pressure that the system operates, the flowing media, process conditions, and other factors.

What is limit switch in pneumatic valve?

Pneumatic Limit Switches are compact, manual mechanical 3 way valves that can be mounted near cylinder movement to provide a pneumatic response once the mechanical operator is tripped. … Valves are either normally closed or normally open.

What is an example of a limit switch?

A good example of this is an automatic garage door. Without a limit switch that stops the door when it reaches the bottom rail, the door would keep moving downwards and eventually crash into the ground, causing serious damage. Limit switches can also be used as part of a larger control system.

Is limit switch a sensor?

Limit switches are a type of sensor that detect presence and absence. Specifically, mechanical limit switches are switches that are mechanically activated, meaning that they have some sort of arm, lever, knob, plunger, etc., which is physically—or mechanically—activated by making contact with another object.

What are limit switches How do they differ from push button switches?

The function of the limit switch is similar to the push-button switch, the difference is of actuation, the limit switch use to actuate mechanically not manually like push button switches.

Article first time published on

What do actuators do?

An actuator is a device that uses a form of power to convert a control signal into mechanical motion. … Industrial plants use actuators to operate valves, dampers, fluid couplings, and other devices used in industrial process control. The industrial actuator can use air, hydraulic fluid, or electricity for motive power.

What is the purpose of a limit switch on a gas furnace?

A furnace limit switch is a component of a forced-air furnace that is responsible for turning on the furnace blower once the desired heat has been met inside the furnace. Without a functioning furnace limit switch, a furnace would not be able to regulate the temperature in conjunction with a thermostat.

Are limit switches normally closed?

A limit switch may be normally open (NO) or normally closed (NC) in its normal resting position. A NO device, when actuated, switches to close (or “make”) the circuit, whereas an NC switch would open and break the circuit when actuated.

What is CV for a control valve?

Valve Flow Coefficient (Cv) is the flow capability of a control valve at fully open conditions relative to the pressure drop across the valve. It is defined as the volume of water (GPM in the US) at 60°F that will flow through a fully open valve with a pressure differential of 1 psi across the valve.

What is valve and types?

Valve typeLinear motionRotary motionPinch valveXButterfly valveXPlug valveXDiaphragm valveX

What is block valve?

The strictest definition of “block valve” (or shutoff valve) refers to it as “any valve that has the capacity to block movement in one or more directions.” Usually, however, people use the term when referencing a valve that can totally prevent or allow motion.

What is the difference between limit switch and proximity sensor?

The main difference is that a limit switch is usually triggered by a mechanical motion (cam, dog, etc.) while the proximity switch is triggered just by the close proximity of the member without actual,physical contact (magnetic, optical, electrostatic, etc.).

How do I know if my limit switch is bad?

The most common sign of a malfunctioning limit switch is the continuous operation of your furnace’s blower. Just as the limit switch won’t allow the fan to turn on until the warm air has reached the right temperature, the limit switch also shuts down when the air cools to a certain temperature.

Is a limit switch analog or digital?

Digital Input Devices Digital sensors are common for basic control needs. Examples of digital input devices include: Limit switches — These are used for a variety of purposes, such as detecting when a safety door is opened or when a robot reaches an external limit.

What is high limit switch?

The high limit switch is a furnace component that controls elements of operation and safeguards the system. … First, the limit switch tells the blower fan when to turn on and off. It does so by sensing air supply temperature, telling the fan to turn on once air is heated in order to circulate it into the home.

What is the function of limit switch in control panel wiring?

Limit Switch Uses and Operation The limit switch then regulates the electrical circuit that controls the machine and its moving parts. These switches can be used as pilot devices for magnetic starter control circuits, allowing them to start, stop, slow down, or accelerate the functions of an electric motor.

Is a limit switch an input or output?

Some examples of input devices include: Switches and push buttons. Sensing devices. Limit switches.

Where are limit switches used?

In electrical engineering, a limit switch is a switch operated by the motion of a machine part or the presence of an object. A limit switch can be used for controlling machinery as part of a control system, as a safety interlock, or as a counter enumerating objects passing a point.

Is actuator a sensor?

SENSORACTUATORIt is used to measure the physical quantity.It is used to measure the continuous and discrete process parameters.

What are the three types of actuators?

• Linear Actuators. Implied by their name, linear actuators are devices that produce movement within a straight path. …
• Rotary Actuators. …
• Hydraulic Actuators. …
• Pneumatic Actuators. …
• Electric Actuators. …
• Thermal and Magnetic Actuators. …
• Mechanical Actuators. …
• Supercoiled Polymer Actuators.

What is an actuator switch?

A switch actuator is the mechanical component on a switch used to manually turn a circuit on and off. Switch actuators can also serve to visually indicate whether a circuit is ON or OFF.

How much does it cost to replace a limit switch on a furnace?

Average Cost of a New Furnace Limit Switch Depending on who your OEM is, this component could roughly cost you anywhere from $4 to $25.

How do you reset a limit switch on a furnace?

1. Locate your furnace’s heating duct. …
2. Locate the white limit switch. …
3. Look at each arm to identify the settings. …
4. Identify the component (setting) located in between the two arms. …
5. Set the temperature on the middle component to approximately 105 to 115 degrees Fahrenheit.
